Generating Element: Dynamic
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 150 Hz - 12 KHz Output
Sensitivity: -56 bBV (1.6mV) @ 1 Pa
Impedance: Low (500 ohms nominal)
Connections: Shield - Microphone ground. Black - Microphone low. Red - Microphone high. White, Green - These wires short together when push to talk button is depressed for additional switching requirements. For unbalanced operation connect black and shield to ground and use red as microphone high.
Phasing: Positive Pressure on Diaphragm generates a positive voltage on the red cable lead relative to the black cable lead
Cable: Four conductor, two shielded permanently attached, rugged, synthetic, jacketed cable. 119S-19 - 1.7m (5 1/2')
Switch: Long life DPDT snap action type with gold plated contacts. Microphone wired normally open
Case: Die Cast Zinc and Brass
Flange: 2 3/4" Heavy-Duty Die Cast Zinc 5/8" 27 M

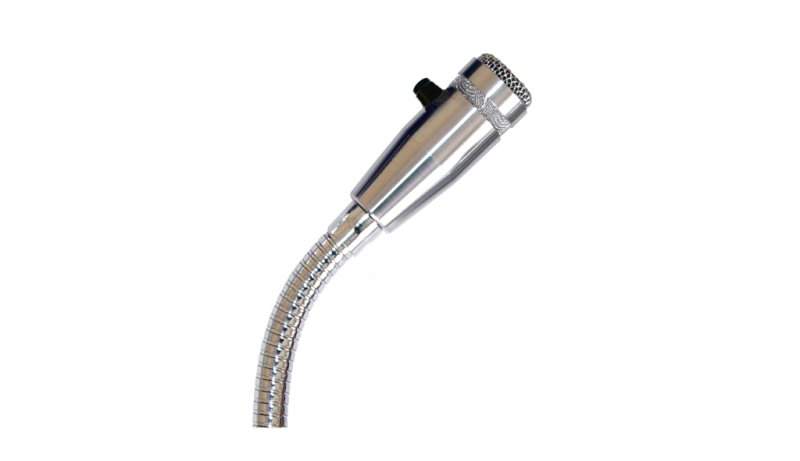

Gooseneck: 19" long by 19/32" diameter chrome
Finish: Plated satin chrome
Dimensions: 119S-19 - 611.2mm (24 1/16") long (includes gooseneck and flange)
NET Weight: 119S-19 - 850 grams (30 oz.) (includes gooseneck and flange)
