Generating Element: Dynamic
Polar Pattern: Omnidirectional
Frequency Response: 50 Hz - 13 kHz
Output Level: -56 dBV (1.6mV) @1 Pa
Sensitivity: 150Hz – 10KHz
Impedance: Low (400 ohms nominal)
Cable: 2.1m (7ft.) of four connector, two shielded, permanently attached, rugged jacketed cable.

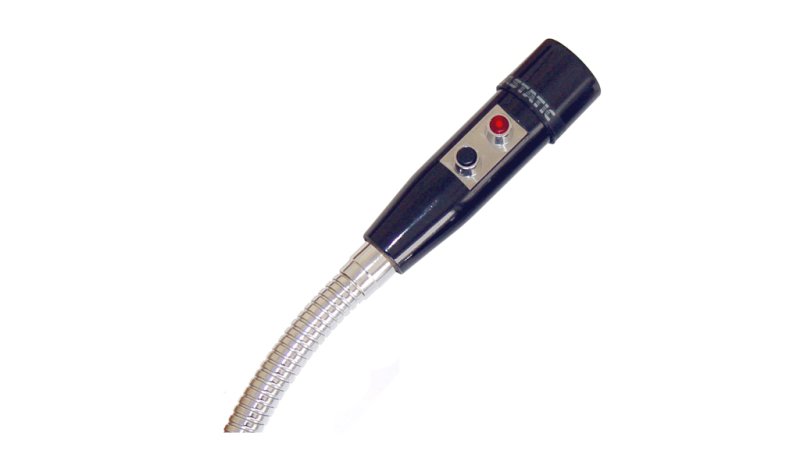

Switch: DPDT professional sealed micro witches, operated with simple push buttons.
Dimensions: 34.9mm (1 3/8") diameter x 115.9mm (4 9/16")
Weight: 198.5 grams (7oz.)
Finish: Black Cycolac cap, chrome plated screen, black cycolac housing.
Phasing: Positive pressure (movement of the diaphragm inward) will generate a positive voltage on the red cable lead with respect to the black cable lead.
Cable connections: Connect cable leads Red and Black to balanced line input, White and Shield (red button) for relay control for one zone, Green and Shield (black button) for relay control for the other zone.
