WM 1000

CAD
  In stock
Model: AMS-WM-1000
UPC: 631922102628
Omnidirectional Wall Mount Dynamic Microphone
$169.99

Overview

Generating Element: Dynamic

Frequency Response: Tailored 200Hz - 4KHZ

Polar Pattern: Omnidirectional

Impedance: 2500 Ohms

Power Level: -48 dB (0 dB - 1 mW per 10 microbars)

Open Circuit Voltage: -58 dB (0 dB = 1 volt per microbar) 12.6 mV/Pascal

Phasing: Positive Pressure on Diaphragm generates a positive voltage on connector tip relative to connector ring

Finish: Black urethane paint

NET Weight: 300 Grams (10.6 oz.)

Details

Description:

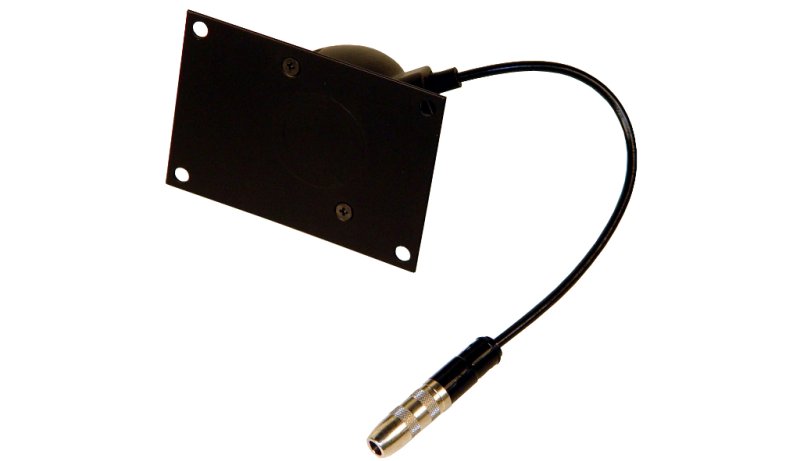

The Astatic model WM 1000 is a dynamic plate mounted microphone. It is designed for applications such as menu boards, drive thru windows, or any application that requires a rugged weather resistant wall mounted microphone. This is the same microphone that
