Continuously-variable polar pattern control
Securable polar-pattern control
All-metal housing suitable for commercial applications
Mounting hardware included
RF (radio frequency) Resistant Architecture
Integrated high-pass filter for elimination of unwanted low-frequency energy
Shock-absorbing polymer bushings included
Inconspicuous design
Operating Principle............................................Condenser
Polar Pattern........................................Continuously-variable
Frequency Response ....................................... 90Hz -17KHz
Sensitivity .........................................-32dBV (25mV) @ 1 Pa
Impedance .............................................................120 ohms
Maximum SPL .................................120dB, 1% T.H.D., 1KHz
Self Noise ...................................................................18dBA
Power Requirements ............................P12, P24, P48, 4mA
Connector ...................................................3-pin XLRM-type
Polarity ................................ Positive pressure on diaphragm corresponds to positive voltage on pin 2 relative to pin 3 at XLR3M-type connector.

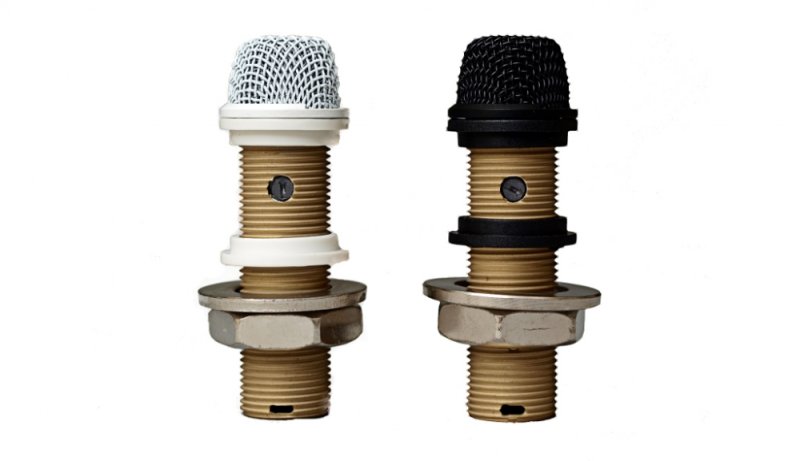

Finish ......................................Durable matte-black urethane or white (220VPW)
Dimensions .....................................................(See drawing)
Net Weight [Mass] ......................................... 3.9oz [0.11Kg]
Packaged Weight [Mass] ...............................5.0oz [0.14Kg]
RF Immunity .........................Meets or exceeds EN55103-2, E1, E2, E3 and E4
RoHS Compliant
Included Accessories ..............................2 rubber bushings, hex nut and washer
