Continuously-variable polar pattern control
Securable variable pattern controls
Remote Variable Pattern compatible when used with Variable Pattern Control box (VPC-1)
Remote Variable Pattern through compatible digital signal platforms when used with 40-360 cable
All metal housing, suitable for commercial applications
RF (radio frequency) Resistant Architecture
Integrated high-pass fi lter for elimination of unwanted low-frequency energy
Shock-absorbing rubber pad
Operating Principle ................................................Condenser
Polar Pattern ........................................Continuously-variable
Frequency Response ..........................................100Hz -20KHz
Sensitivity ..........................................-33dBV (22.4mV) @ 1Pa
Impedance ..............................................................150 ohms
Maximum SPL .........................................120dB, 1% THD, 1KHz
Self Noise .....................................................................22dBA
Power Requirements .................................P12, P24, P48, 4mA

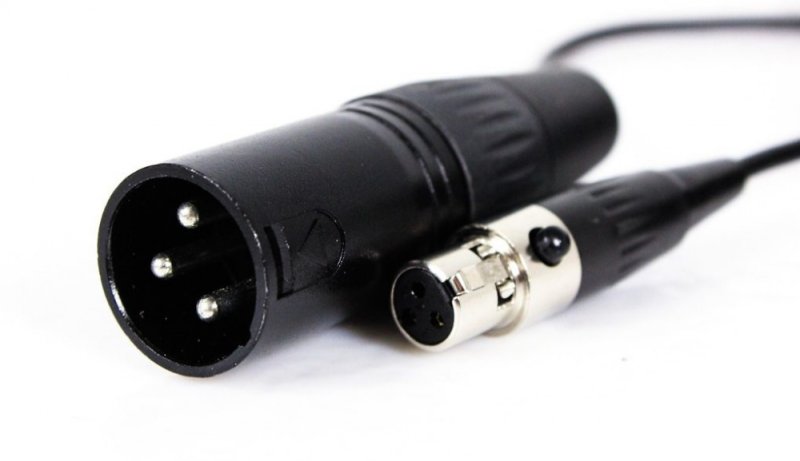

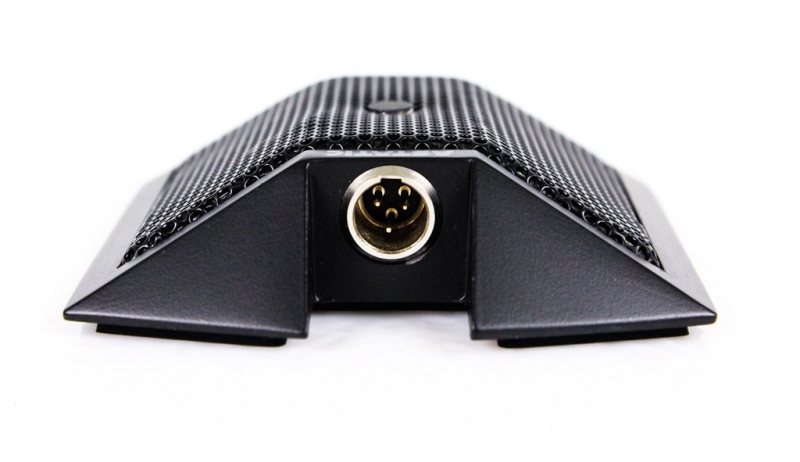

Connector ...................................................3 Pin - TA3M-type
Polarity ..............Positive pressure on diaphragm corresponds to positive voltage on pin 2 relative to pin 3 at XLR3M-type connector
Finish .......................................Durable matte-black urethane
Dimensions ............................4.3" [109mm] long, 3.0" [76mm] wide and 0.8" [20mm] high
Net Weight [Mass] ............................................ 6.7oz [0.19Kg]
Packaged Weight [Mass] .................................1lb 4oz [0.56Kg]
RF Immunity ....Meets or exceeds EN55103-2, E1, E2, E3 and E4
RoHS Compliant
