611L

CAD
  In stock
Model: AMS-611L
UPC: 631922102307

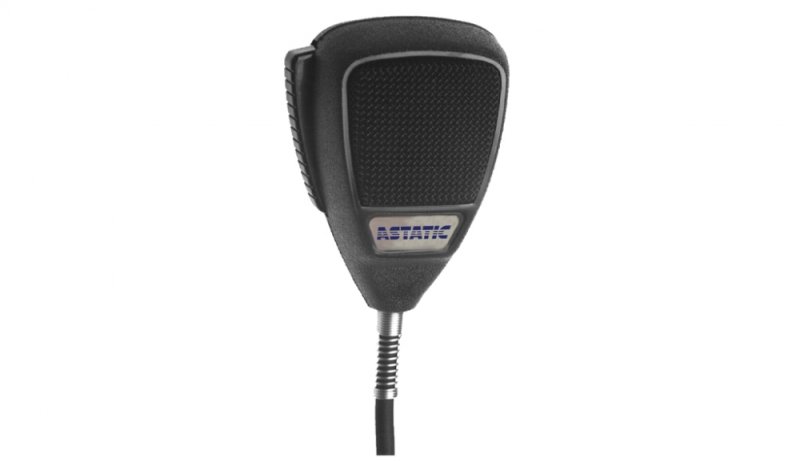

Palm Held Omnidirectional Dynamic Microphone with Push-to-Talk Switch, Hangup clip included
$109.99

Overview

Element: Dynamic

Pattern: Omnidirectional

Frequency Response: 100 to 7500 Hz

Output Level: -58 dB (0 dB = 1mw / 10 microbars), -76 dB (0 dB = 1 volt / microbar), 1.6 mV/PA

Impedance: 400 ohms, matches 150 to 1000 ohms

Cable: Four conductor, two shielded, permanently attached, heavy duty, neoprene jacketed coil cord that extends to 1.8m (6 ft.)

Switch: Operated by press-to-talk lever, 2PDT long life, trouble free switch with spring return, has smooth feel. Wired normally open

Housing: Durable molded black Cycolac

Dimensions: 100mm (3-15/16") high x 75.4mm (2-3/32) wide x 54.8mm (2-5/32") deep

Weight: 227 grams (8 oz.)

Details

Description:

The Astatic Model 611L is an omnidirectional, dynamic microphone designed for hand held applications in quality sound installations. The frequency response, especially tailored for voice communications, provides a crisp, clear, highly intelligible sound.
