878HL-2

CAD
  In stock
Model: AMS-878HL-1437

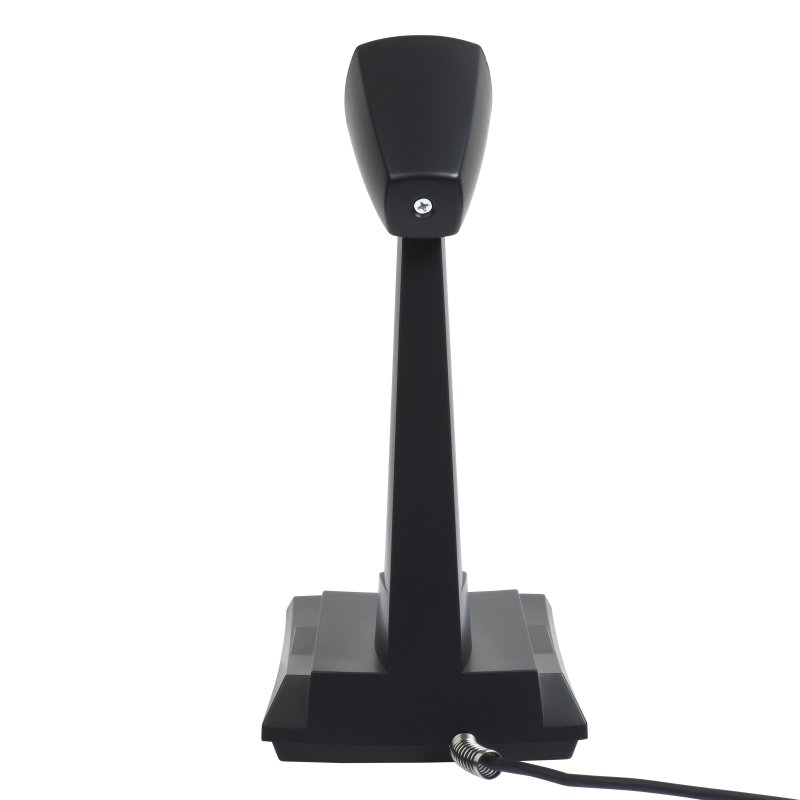

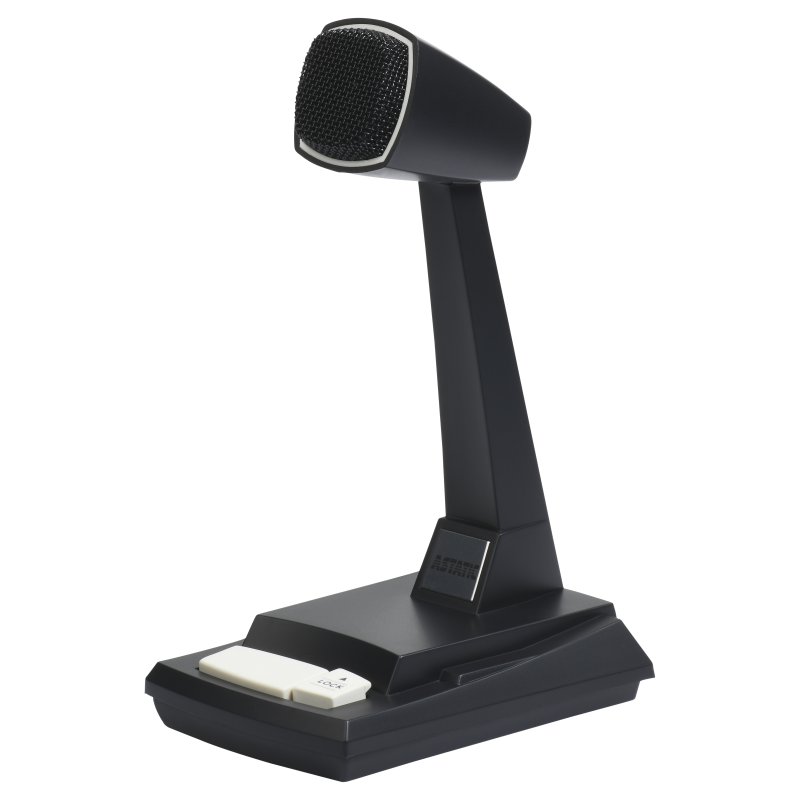

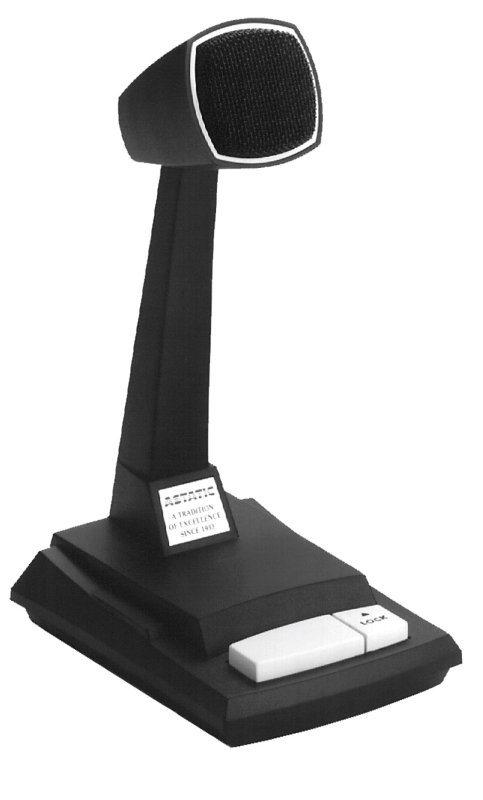

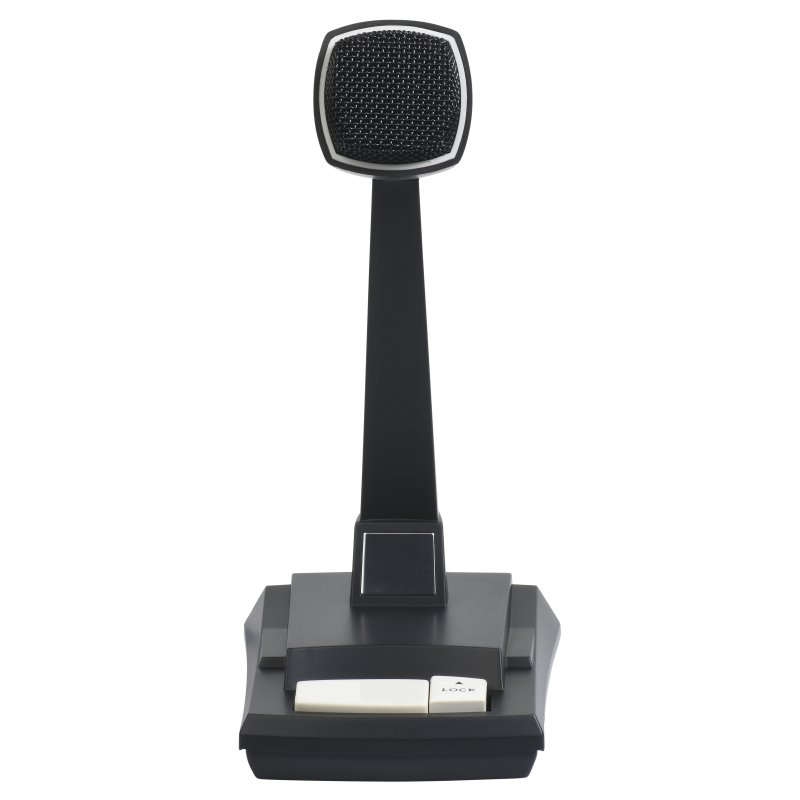

Omnidirectional dynamic desk top microphone with locking push to talk switch

Overview

Element: Dynamic

Pattern: Omnidirectional

Frequency Response: 50 to 12,000 Hz

Output Level: HiZ: -55dB (0dB = 1 volt / microbar) -151 dB EIA

LoZ: -58 dB (0dB = 1mw / 10 microbars) -76 dB (0dB = 1 volt / microbar) -152 dB EIA

Impedance: HiZ: 40,000 ohms, matches 100K ohms or greater

LoZ: 400 ohms, matches 125 to 1000 ohms

Switch: Control: DPDT professional long life leaf switches operated with a simple push-to-talk operation.

Impedance: DPDT slide switch located on underside of the microphone

Cable: 2.1m (7 ft.) of heavy duty four conductor (two shielded) cable

Dimensions: 238mm (9-3/8") high; 110mm (4-11/32") wide 148mm (5-27/32")deep

Weight: 687 grams (24-1/4 oz.)

Finish: Durable molded Cycolac in black with die cast base painted in a complimentary color

Details

Description:

The Astatic Model 878HL is a duel impedance, omnidirectional dynamic desk microphone offering modern styling and features in a rugged Cycolac housing for all industrial and commercial public address and paging applications. The Model 878HL has a slide swi
