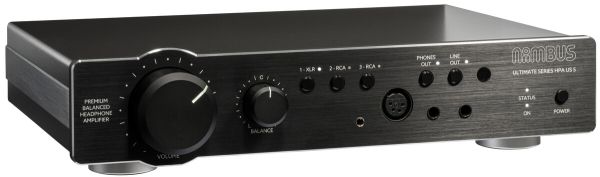

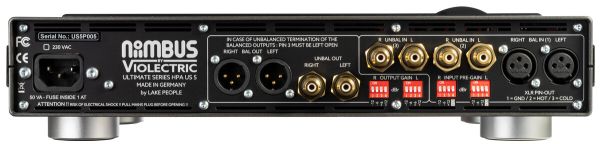

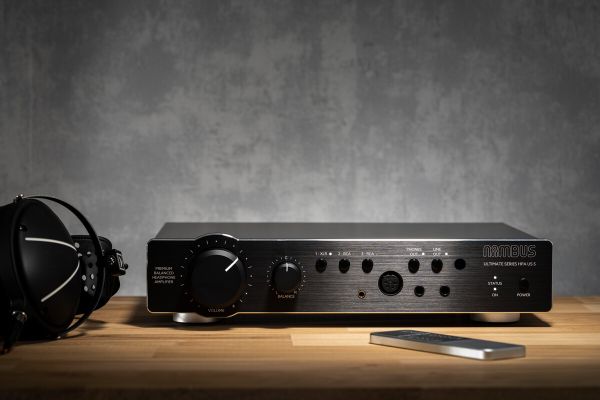

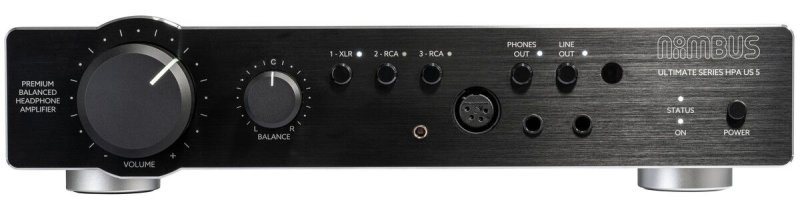

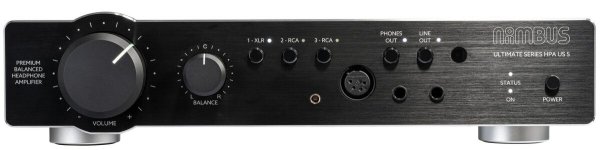

The Niimbus US 5 offers:
Remote control for input selection, output selection, volume, mute.
3 analog stereo inputs, 2 x unbalanced via RCA, 1 x balanced via XLR.
- 18 … +24 dB pre-gain for the perfect adjustment of the US 5 between source and headphones.
Motorized volume control and balance control (manual).
4 powerful amplifiers, 7000 mW Pmax in 50 ohms and 32 V RMS in 600 ohms.
Monitoring of the KH outputs with regard to DC voltage and overload.
Headphone and line outputs individually selectable.
1 balanced headphone output with 4-pin XLR.
1 balanced headphone output with 4.4 mm Pentaconn.
2 unbalanced outputs with 6.3 mm jack.
2 x line outputs, 1 x unbalanced via RCA, 1 x balanced via XLR.
Adaptation of the line outputs to the following devices in the range +/- 12 dB.
2 toroidal transformers, > 50,000 uF filter capacitance.
