FEATURES

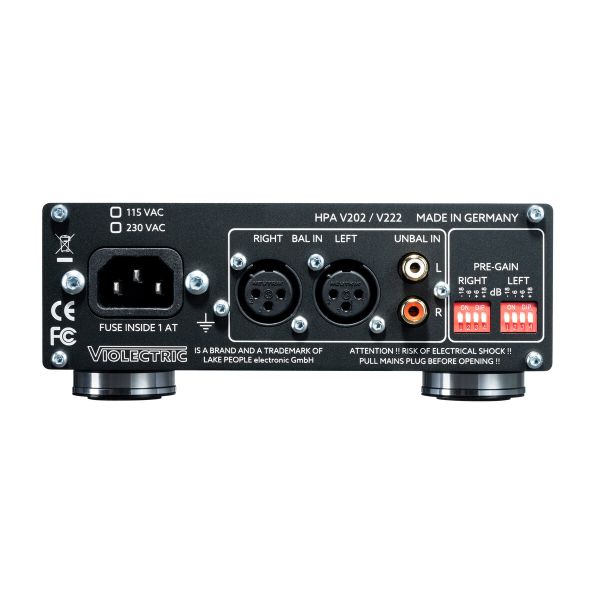

Line input:
Stereo XLR, balanced.
Stereo RCA, unbalanced.
Headphone outputs:

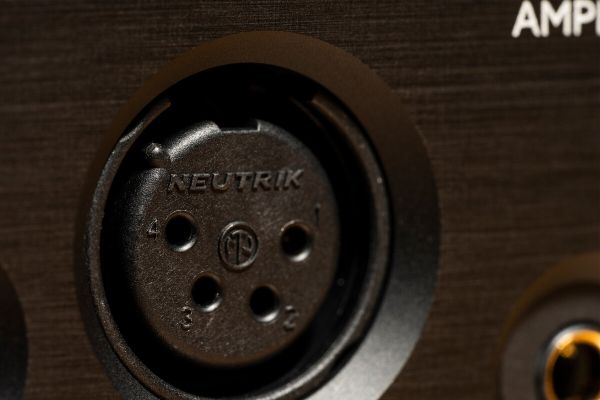

1 x 4-pin XLR, balanced.
1 x Pentaconn, symmetrical.
1 x 6.3 mm jack, unbalanced.
+Line inputs (XLR and RCA) switchable on the front.
+/- 18 dB pre-gain for optimal adjustment of the HPA V222 to the source and headphones.
Volume control with RK 27 potentiometer.
Large 38 mm all-aluminum button.
Powerful symmetrical stereo amplifier (4 power amplifiers).
3500mW Pmax into 50 ohms.
23V RMS into 600 ohms.
Delayed activation of the headphones after power-on.
Built-in power supply with toroidal transformer.
22,000uF filter capacitance.
